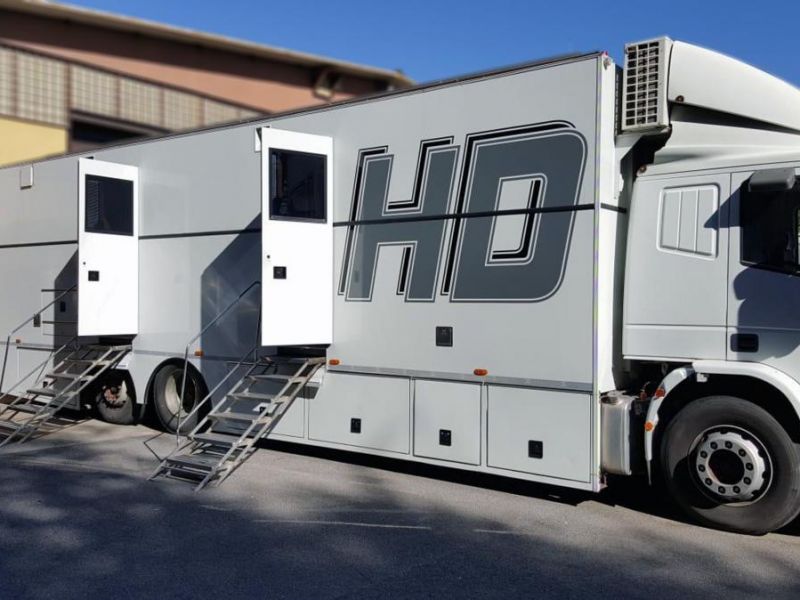

IVECO 170- E27 OB-VAN Eurocargo, mobile tele direc

Vehicle that can only be viewed by APPOINTMENT at the LINK MOTORS - PERUGIA branch

Via Tiberina, --BLOCKED-- Collepepe (PG)

Addresses: Tel. --BLOCKED--1 Cell. --BLOCKED--

Email: --BLOCKED--



IVECO 170-E27, year 1999



Vehicle registered as G7 (mobile laboratory van), complete fitting approved for special use, without tachograph.



MAINTENANCE: Very accurate, regularly performed all routine checks. 80% tires.



DEFECTS: nothing to highlight.

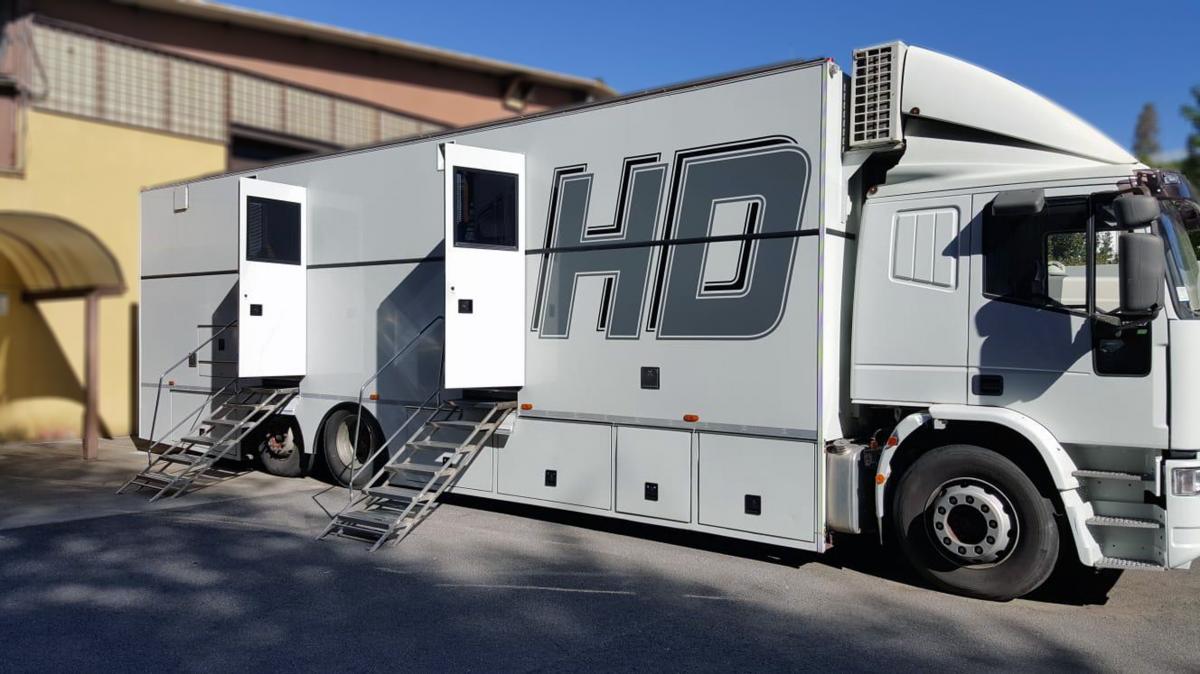

EQUIPMENT: STEERING AXLE 12 MT., 3

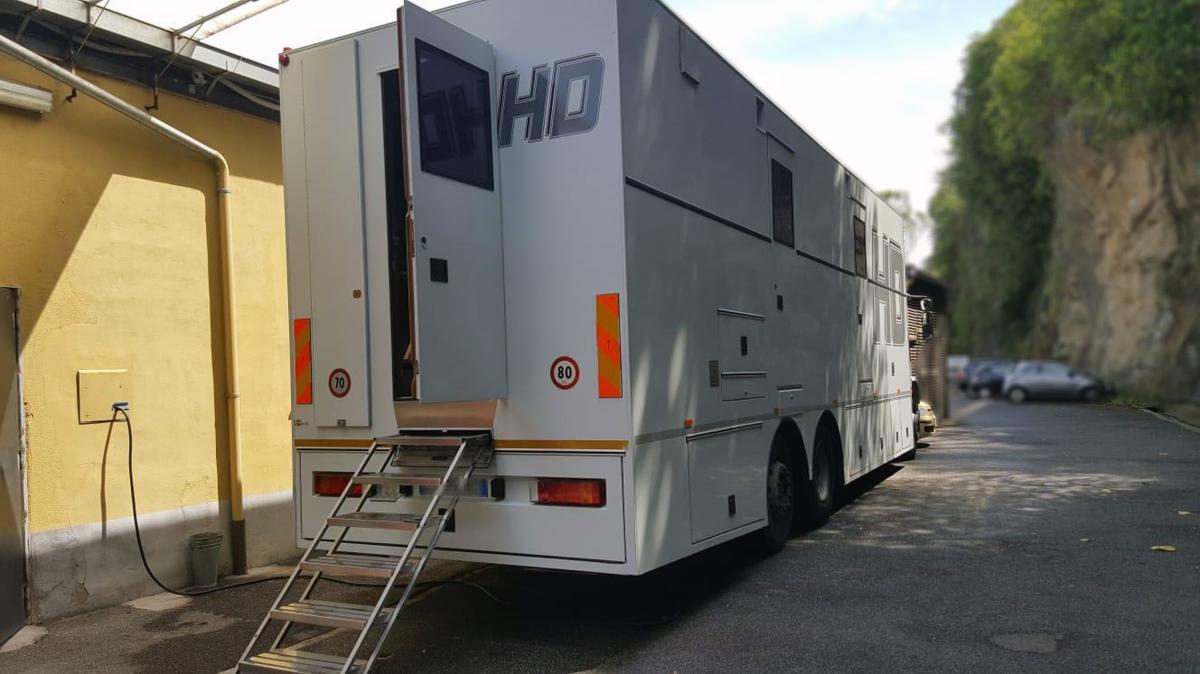

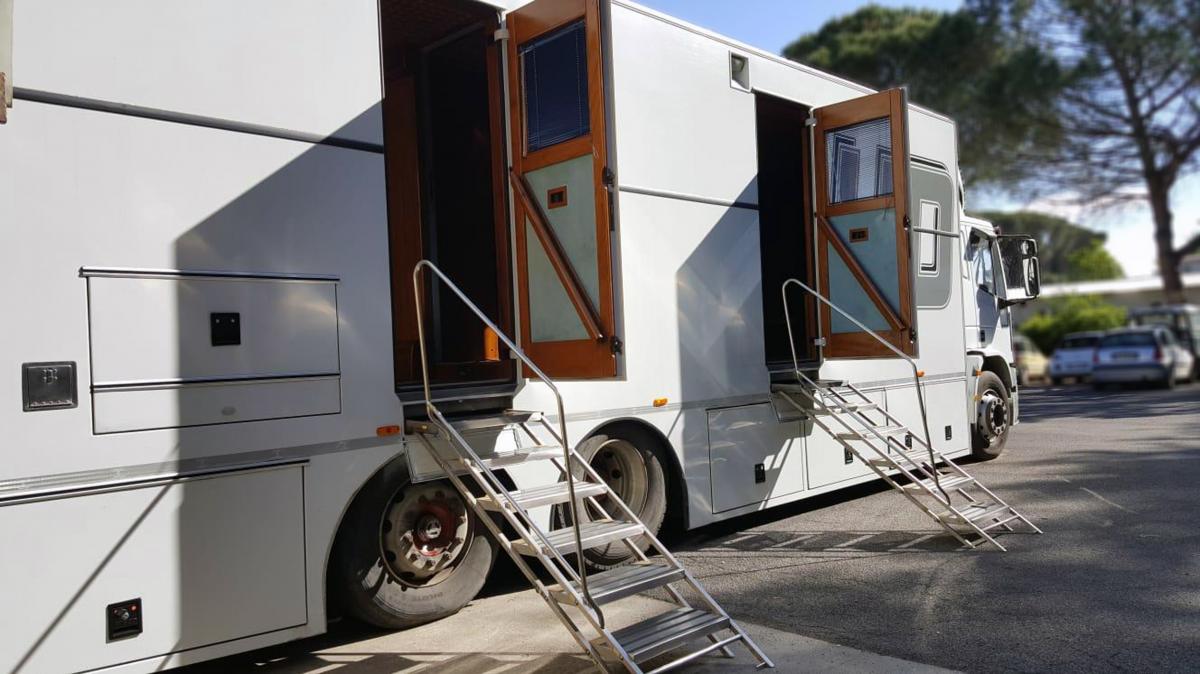

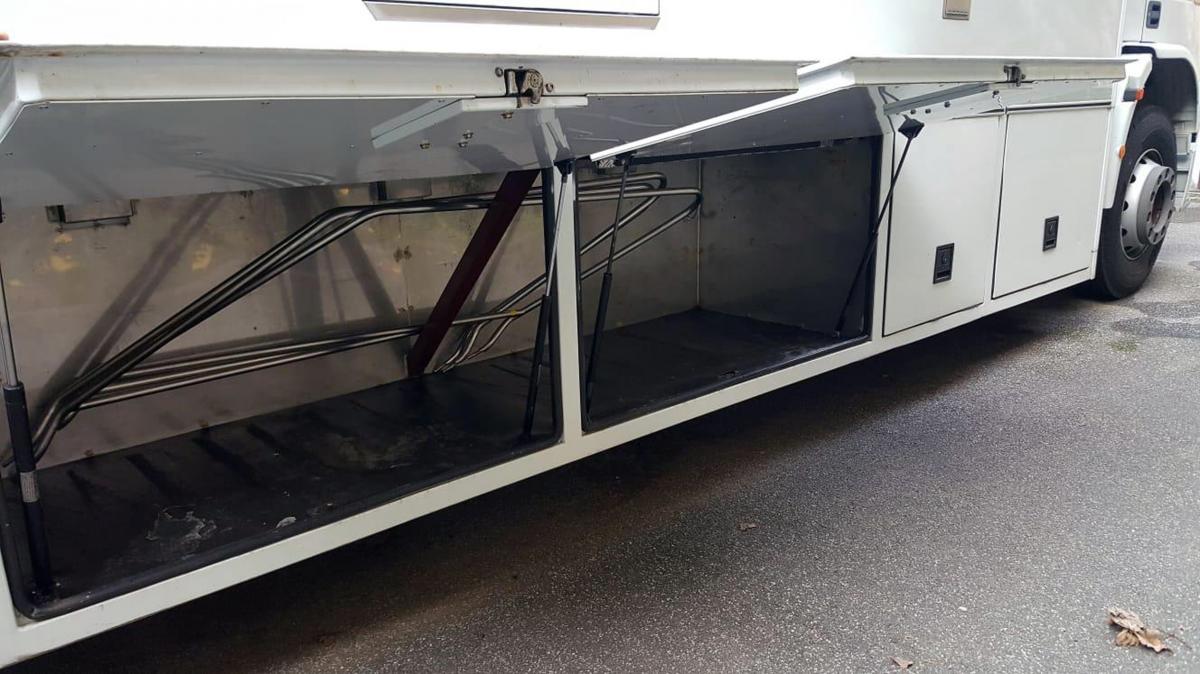

ENTRANCES X SEPARATE ROOMS WITH RETRACTABLE STAIRS, TILT ROOF RANGE 30 Q. WITH SIDE PROTECTIONS AND ACCESS SCALE, AUTONOMOUS GROUP F. PANDA 15 KW, ISOLATION TRANSFORMER AND AUTOMATIC EXCHANGER, TELESCOPIC 8 MT. TECHNICAL EQUIPMENT LOADING, REAR LOCKER WITH ELECTRIC CABLE COLLECTORS, STABILIZER JACKS



TECHNICAL EQUIPMENT:



HD VIDEO DIRECTION? 12 CAMERAS



4 Monitor HD-4K 50? HISENSE Viewing the Video Mixer Multiview

1 Mixer FOR.A HVS-2000.

2 ME.Virtual outputs. 32 inputs 4DVE 3D.12 keys and 14 auxiliary outputs

3 Unit? Listening EFT 4 channels

3 Unit? remote intercoms TELEX

(Direction Desk and Assistant Desk)

2 Monitor level EFT volume control

2 GENELEC audio speakers for listening to the program

2 Panels Remote video matrix FOR.A .MFR-32 channels

2 Monitor 17 BlackMagic LCD-HD Desk Station

1 Wiring for connections Replay Panels both LAN and 9 PIN

1 Extra video cables to add other Video equipment

1 1 Gigabyte 24 Port Network Distributor

AUDIO DIRECTION

3 Dual HD Video Monitors. Black magic

3 RANE audio delay (to modify the audio delay)

1 ALESIS audio delay (Voice Effect processor)

2 Dual AEV hybrids (Analog Telephone Hybrids)

2 TELEX remote intercom stations

1 APHEX Limiter (compressors)

3 Limiter DDX-266XL (compressors)

2 SONY Minidisc Player and Recorder

1 SONY cd player

2 GENLECK audio speakers

2 FOSTEX audio speakers

1 Yamaha M7CL 48 CH Digital Audio Mixer with possibility? to interface with Madi stations.

2 4 wire 2 wire interfaces TELEX

1 unit? Listening 4 EFT channels

1 TELEX intercommunication basestation

13 1x10ch DTL audio distributors

1 Complete Pastega-Wisicom Basket with

6 receivers

4 Collar Microphone Radio

2 Radio Microphones Ice Cream

1 Laptop 15? for intercom management and audio embedders

1 Analog to Digital Audio Converter

1 FOR.A matrix panel MFR-16 channels

CONTROL / RVM

1 Current wiring for connecting 12 Camera Controls

1 12 Remote Cables for Camera Controls

14 Monitor Trinitron Digital Sony 9? Room Control

2 JVC monitors. DTV -17 HD

1 Monitor BlackMagic 17 HD

1 FOR.A matrix? MFR.5000 expandable up to 128 inputs and 128 outputs - 3G

* Currently and? 80 inputs and 80 outputs.

3 TECTRONICX Synchronous Generator

1 Change over TECTRONICX

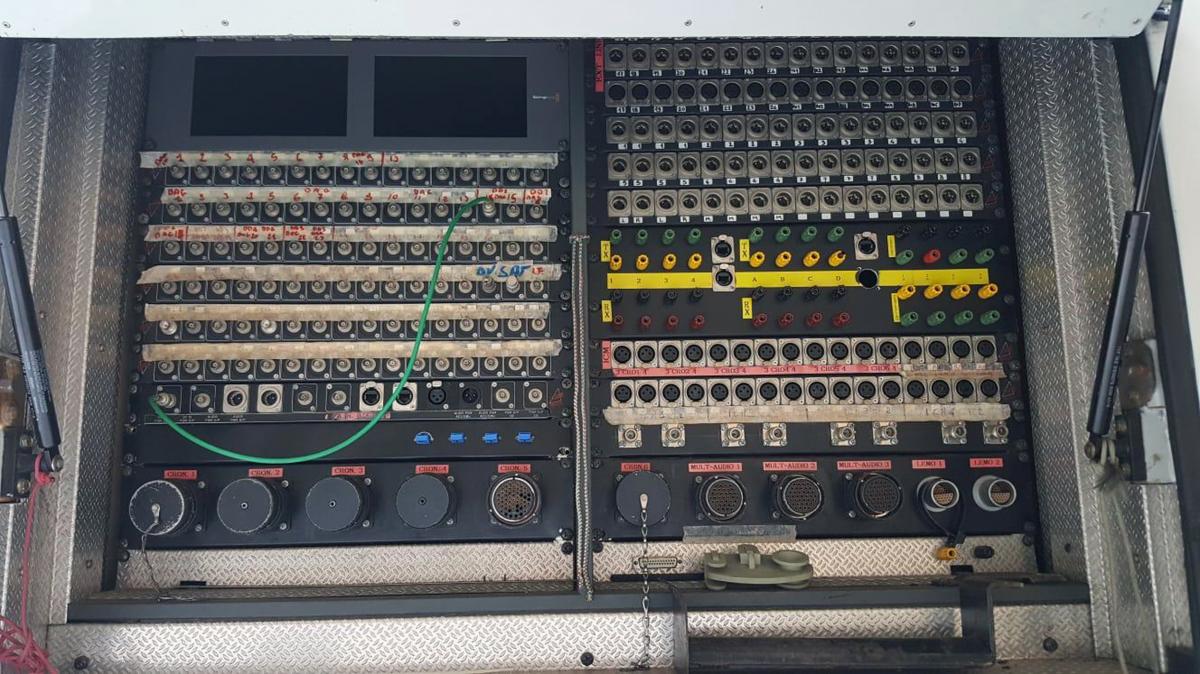

8 Pecciere 32 + 32 (Video Disconnectors)

2 Waveform BlackMagic (Technical control of the video signals of the Cameras)

3 TELEX remote intercoms

2 Panels Matrix FOR.A MFR-16 Channels

2 HD Sdi converters - HDMI Teranex BlackMagic

2 ROSS video distributor baskets

1 Lynx 8 3G-HD-SDI Video Distributor Basket + Embeddatori

1 Basket of distributors Video genesis TECNICHE

1 Replay wiring set up for 4 output channels and 6 input channels

1 Fixed PC Assembled ASUS.STRIX .B250F. Windows 10 Professional + 42 HD-4K HISENSE monitor?

1 EDIUS 8 video editing system

1 unit? Listening 4 channels

5 DTL audio distributors

1 TELECO satellite dish motorized system

1 Audio Mixer 16 channels for editing management

1 FOR.A matrix panel MFR-16 channels

1 Sony PDW DIGI-500 Video Recorder Digitalbeta

1 Sony IMX-2000P Video Cassette Recorder IMX

1 Ready for connection of 8 recorders both in input and output

1 1 Gigabyte 24 Port Network Distributor



DESK STATION FOR DIRECTOR OF PHOTOGRAPHY OR REPLAY

1 TELEX remote intercom

1 4-channel EFT audio monitor unit

1 FOR.A matrix panel -MFR-16 channels

1 Monitor BlackMagic 17? HD Technical Control

2 Sony Trinitron Digital Monitors 9 inches

Triax cables about 1400 meters * (half included)



CABLE EQUIPMENT ON BOARD OF THE MIDDLE DIRECTOR

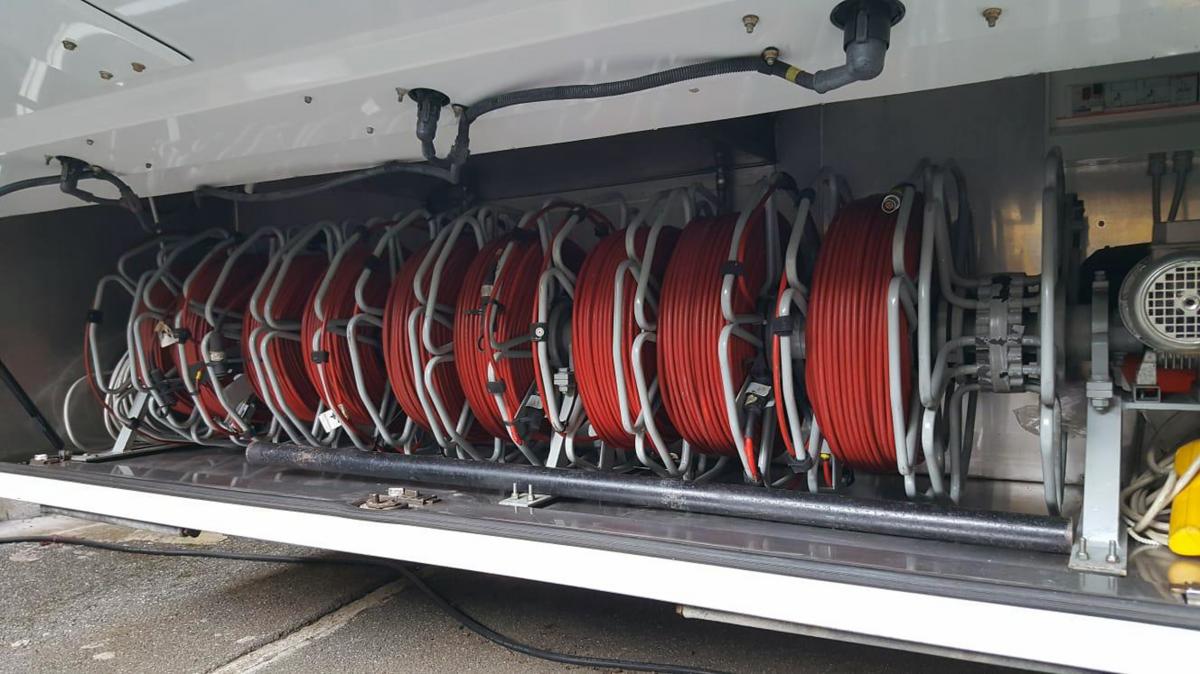

9 TRIAX COLLECTORS 200 METERS ROOM -TOTAL 1800MT

4 TIMELINE AUDIO.VIDEO.INTERCOM.ALIMENT CABLES. TOTAL 200MT

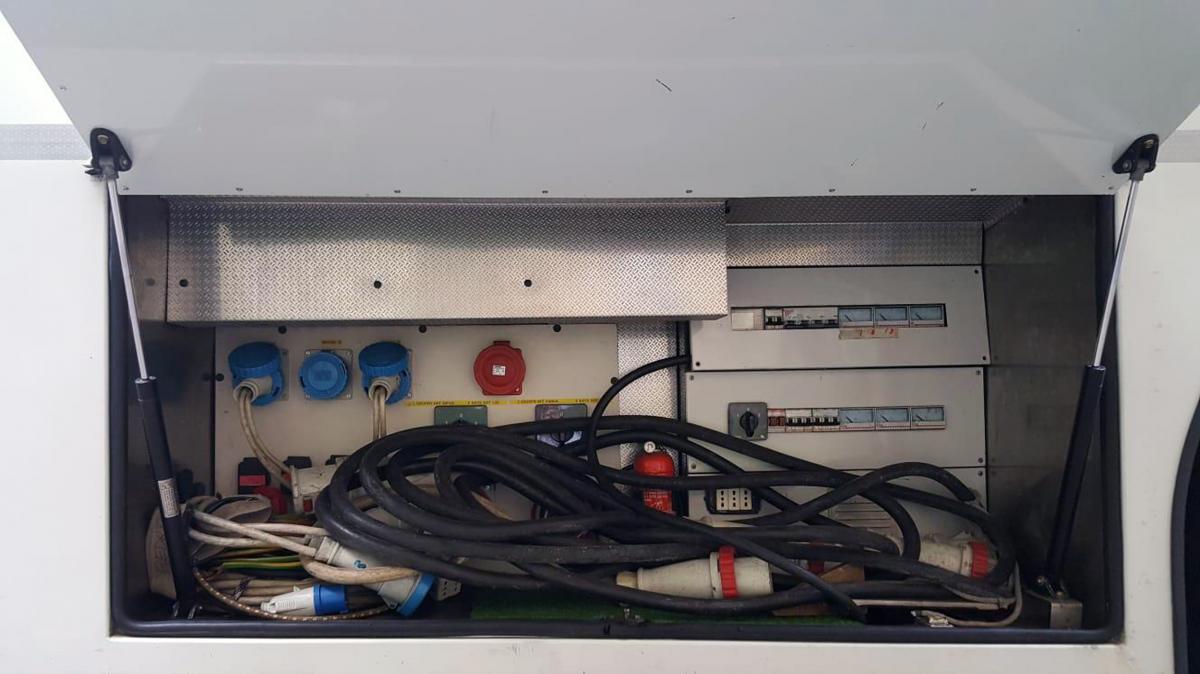

4 POWER SUPPLY CABLES 125AMP-63AMP



OTHER: Hand-crafted tailpipe, caps and minivans painted as bodywork.



ON DEMAND:



- COMPLETE KIT SONY HXC-100 + CCU + RCP + HDVF



Availability n. 5 kits for € 20,500.00 inc VAT each.



- COMPLETE KIT SONY HSCU 100-HD + CCU + RCP + VIEW OLED 7



Availability n. 5 kits for euro 33.500,00 incl. VAT each.



The technical equipment and accessories indicated in this sheet may not coincide with the actual equipment of the vehicle, due to the non-uniformity of the
